ARCPEX 200A Stick Welder, 110V/220V Dual Voltage ARC Welder, Portable IGBT Inverter Machine, Hot Start Anti-Stick Mini MMA Welder for Home, Farm, DIY Repairs
-
Estimated Delivery:Nov 12 - Nov 16
-
Free Shipping & Returns: Experience peace of mind with our trusted logistics services
Tip: If you ordered multiple items, they might arrive in separate packages. Please rest assured that all your packages will arrive soon.
ARCPEX 200A Stick Welder, 110V/220V Dual Voltage ARC Welder, Portable IGBT Inverter Machine, Hot Start Anti-Stick Mini MMA Welder for Home, Farm, DIY Repairs
The ARCPEX ARC200 DV is a dual-voltage MMA/Stick and DC Lift TIG 2-in-1 welder built for construction, pipeline, farm, and mobile welding. The published manual lists input of 110V ±15% and 230V ±15%, with output adjustment ranges of 10–120A and 10–200A respectively. Hot Start, Arc Force, Anti-Stick, and VRD protection — in a compact IGBT inverter. Backed by a 2-Year Extended Warranty and 6-hour rapid response support.
⚡ OUTPUT RANGE & DUTY CYCLE
The published manual lists 10–120A output adjustment at 110V ±15% input and 10–200A at 230V ±15% input. The upper adjustment range is not a promise of continuous welding at that current.
Duty-cycle ratings below come from the owner-approved final nameplate PDF for the current retail batch. The label uses nominal U1=220V and U1=110V; the manual separately specifies 230V ±15% and 110V ±15% input. The manual's 230V entry and the label's nominal 220V entry are distinct source labels, not identical test entries.
TIG at U1=220V: 200A/35%, 152A/60%, 118A/100%.
TIG at U1=110V: 120A/30%, 85A/60%, 66A/100%.
MMA/Stick at U1=220V: 200A/15%, 99A/60%, 77A/100%.
MMA/Stick at U1=110V: 120A/10%, 49A/60%, 38A/100%.
Each current/duty-cycle pairing applies only to its stated process and label input voltage. Duty cycle is the share of a specified test period during which the welder can operate at a stated current and ambient temperature. A 100% entry applies only to that listed current under the applicable test conditions, not unlimited welding at maximum output. Allow required cooling periods and follow the operating instructions.
Weld suitability and penetration depend on the process, material, joint preparation, electrode, settings, and technique; no universal plate-thickness guarantee is made.
🔧 2-IN-1: MMA STICK + DC LIFT TIG
The ARC200 DV supports both MMA/Stick and DC Lift TIG welding — two processes in one machine. It does not provide a MIG wire-feed process. Switch to Lift TIG for precision work on steel and stainless steel.
⚠️ Lift TIG requires an appropriate TIG torch and accessories, argon shielding gas, and tungsten electrodes. The WP-17V TIG torch with 35–50 Dinse connector is sold separately.

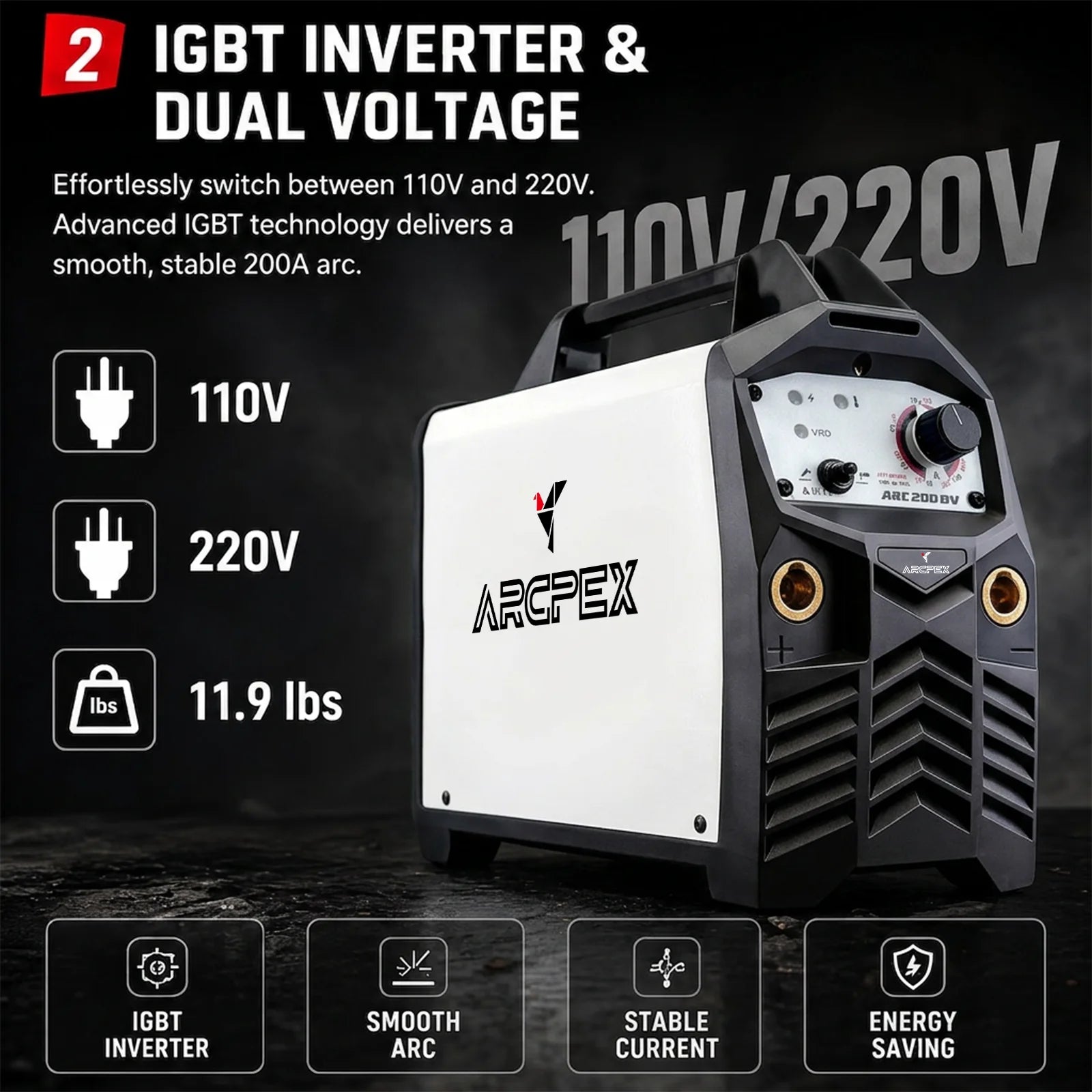

🔌 DUAL-VOLTAGE INPUT — CHECK SUPPLY REQUIREMENTS
The published manual specifies 110V ±15% input with 10–120A output adjustment and 230V ±15% input with 10–200A output adjustment.
Final current-batch label input I1max/I1eff: TIG at U1=220V: 26.5/15.7A; TIG at U1=110V: 27.3/15A; MMA/Stick at U1=220V: 40.9/15.8A; MMA/Stick at U1=110V: 45.5/14.4A. These are nameplate input-current values, not breaker ratings, and do not establish 15A/20A circuit compatibility.
Dual-voltage capability does not establish compatibility with every outlet, circuit, or generator. Have a qualified electrician verify the intended supply, circuit protection, wiring, grounding, and connection against the machine's input requirements before use. Compatibility with 120V/15A or 20A circuits is not promised without verified input conditions. Generator use requires verification of the generator's electrical output and suitability; automatic voltage sensing is not a substitute for that check.
🛡️ 4-IN-1 PROTECTION SYSTEM
🔥 Hot Start — Extra current burst at arc initiation for instant, reliable strikes on any electrode or surface condition
⚡ Arc Force — Auto-increases current during short-circuits to prevent sticking and ensure deep penetration
🚫 Anti-Stick — Cuts power instantly when electrode sticks, protecting both electrode and workpiece
🛡️ VRD — Reduces open-circuit voltage to safe levels (<35V) when not welding
| Model | ARCPEX ARC200 DV |
| Input Voltage (Published Manual) | 110V ±15% / 230V ±15%; verify supply requirements before use |
| Output Adjustment @ 110V ±15% Input | 10–120A (published manual) |
| Output Adjustment @ 230V ±15% Input | 10–200A (published manual) |
| Duty Cycle (Final Current-Batch Label) | TIG at U1=220V: 200A/35%, 152A/60%, 118A/100%. TIG at U1=110V: 120A/30%, 85A/60%, 66A/100%. MMA/Stick at U1=220V: 200A/15%, 99A/60%, 77A/100%. MMA/Stick at U1=110V: 120A/10%, 49A/60%, 38A/100%. Process- and voltage-specific label ratings. The label's nominal 220V and the manual's 230V ±15% are distinct source entries, not identical test entries. Follow applicable operating conditions and cooling periods. |
| Welding Processes | MMA/Stick · DC Lift TIG (not MIG wire-feed) |
| Electrode Types | E6010 · E6011 · E6013 · E7018 · E7024 · Stainless |
| Electrode Size | 1/16"–5/32" (1.6–4.0mm) |
| Protection System | Hot Start · Arc Force · Anti-Stick · VRD |
| Technology | IGBT Full-Bridge Inverter |

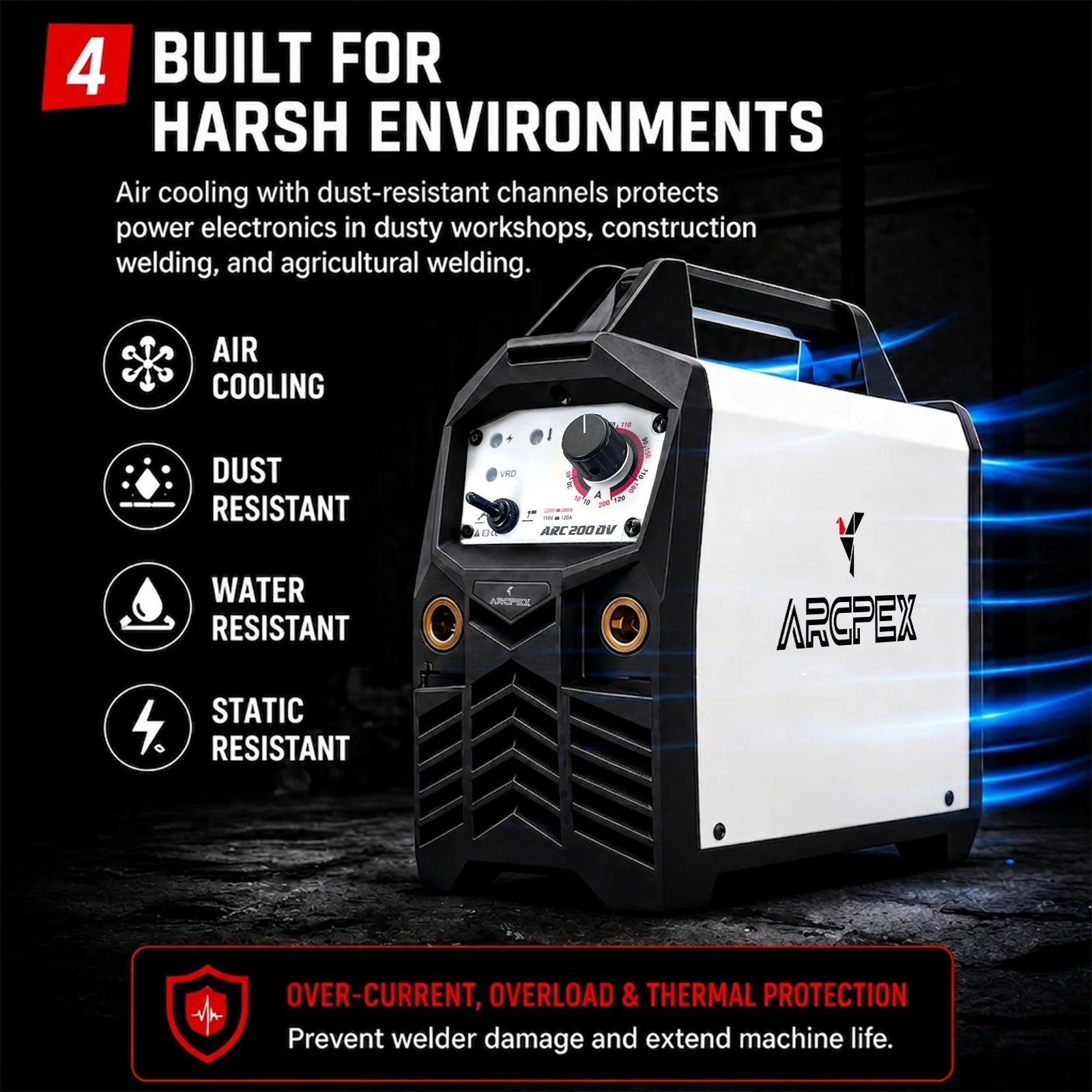

| Cooling | Forced-Air + Dust-Resistant Housing |
| Protection Rating | IP21S · Class F |
| Certifications | CE · EN60974-1 · EN60974-10 |
| Warranty | 2-Year Extended Warranty · 6-Hour Support Response |
🏗️ Construction & Structural Steel
E7018 on rebar, I-beams, steel framing, and building construction. Arc Force ensures deep penetration on thick structural plate. Hot Start eliminates cold starts on mill scale and primer-coated steel.
🔩 Pipeline & Pressure Vessel
E6010 root passes on oil and gas pipelines, pressure vessels, and water mains. Arc Force maintains stable arc through the root gap. VRD protection keeps operators safe in wet trench conditions.
🚜 Farm & Ranch Repair
Tractor repairs, implement fabrication, trailer welding, gates, and fencing. Works on rusty and dirty farm equipment where MIG fails. Confirm that the intended farm supply meets the machine's electrical requirements before use; compatibility with an arbitrary farm outlet is not guaranteed.
🚗 Mobile & Field Welding
Compact and portable for field service, on-site repairs, and emergency breakdown welding. Verify the intended supply or generator against the machine's electrical requirements before use; not every generator is suitable. VRD ensures operator safety in outdoor and confined-space environments.
-

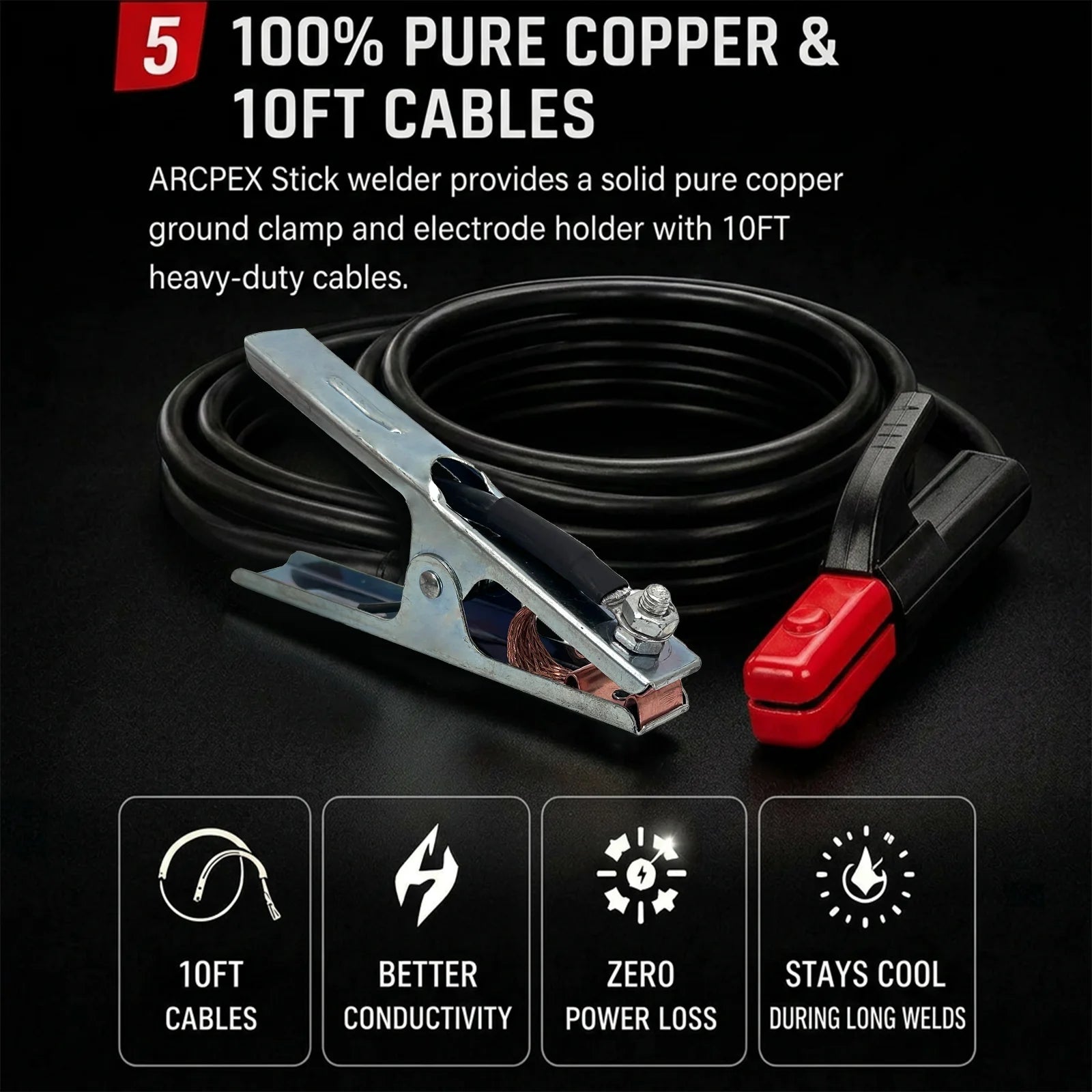

1× ARCPEX ARC200 DV welding machine - 1× Electrode Holder with cable (10FT)
- 1× Ground Clamp with cable (10FT)
- 1× User Manual (English)
- ⚠️ Electrodes not included — Lift TIG requires an appropriate TIG torch and accessories, argon shielding gas, and tungsten electrodes. WP-17V TIG torch with 35–50 Dinse connector sold separately.
What is VRD and why does it matter for safety?
What is Hot Start and why does it matter?
What is Arc Force and when does it activate?
Can I use it for TIG welding? What do I need?
Can the ARC200 DV run E6010 electrodes?
What input and output ranges does the manual specify?
Does duty cycle mean I can weld continuously?
TIG at U1=220V: 200A/35%, 152A/60%, 118A/100%.
TIG at U1=110V: 120A/30%, 85A/60%, 66A/100%.
MMA/Stick at U1=220V: 200A/15%, 99A/60%, 77A/100%.
MMA/Stick at U1=110V: 120A/10%, 49A/60%, 38A/100%.
Do not transfer a rating between processes or input voltages. The label's nominal 220V and the manual's 230V ±15% are distinct source entries, not identical test entries. A 100% rating applies only to its listed current and applicable test conditions, not continuous operation at maximum output. Follow the operating instructions and required cooling periods.
What does the 2-Year Warranty cover?
