ARCPEX ARC140 MINI MMA Stick Welder, 110V IGBT Inverter Welder, Hot Start Anti-Stick Arc Force, Portable Mini ARC Welder for Home, Farm, DIY Repairs
-
Estimated Delivery:Oct 29 - Nov 02
-
Free Shipping & Returns: Experience peace of mind with our trusted logistics services
Tip: If you ordered multiple items, they might arrive in separate packages. Please rest assured that all your packages will arrive soon.

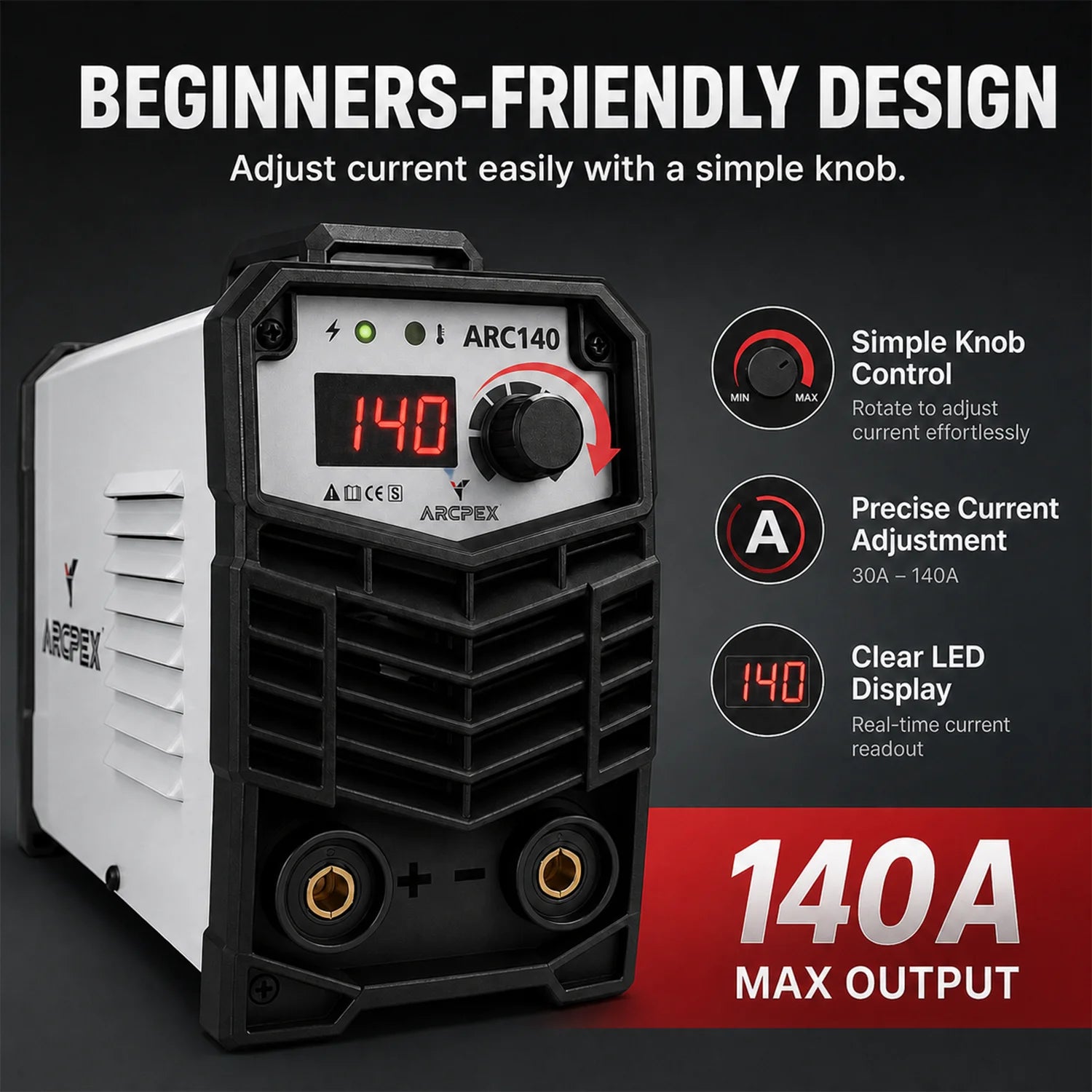

ARCPEX ARC140 MINI MMA Stick Welder, 110V IGBT Inverter Welder, Hot Start Anti-Stick Arc Force, Portable Mini ARC Welder for Home, Farm, DIY Repairs

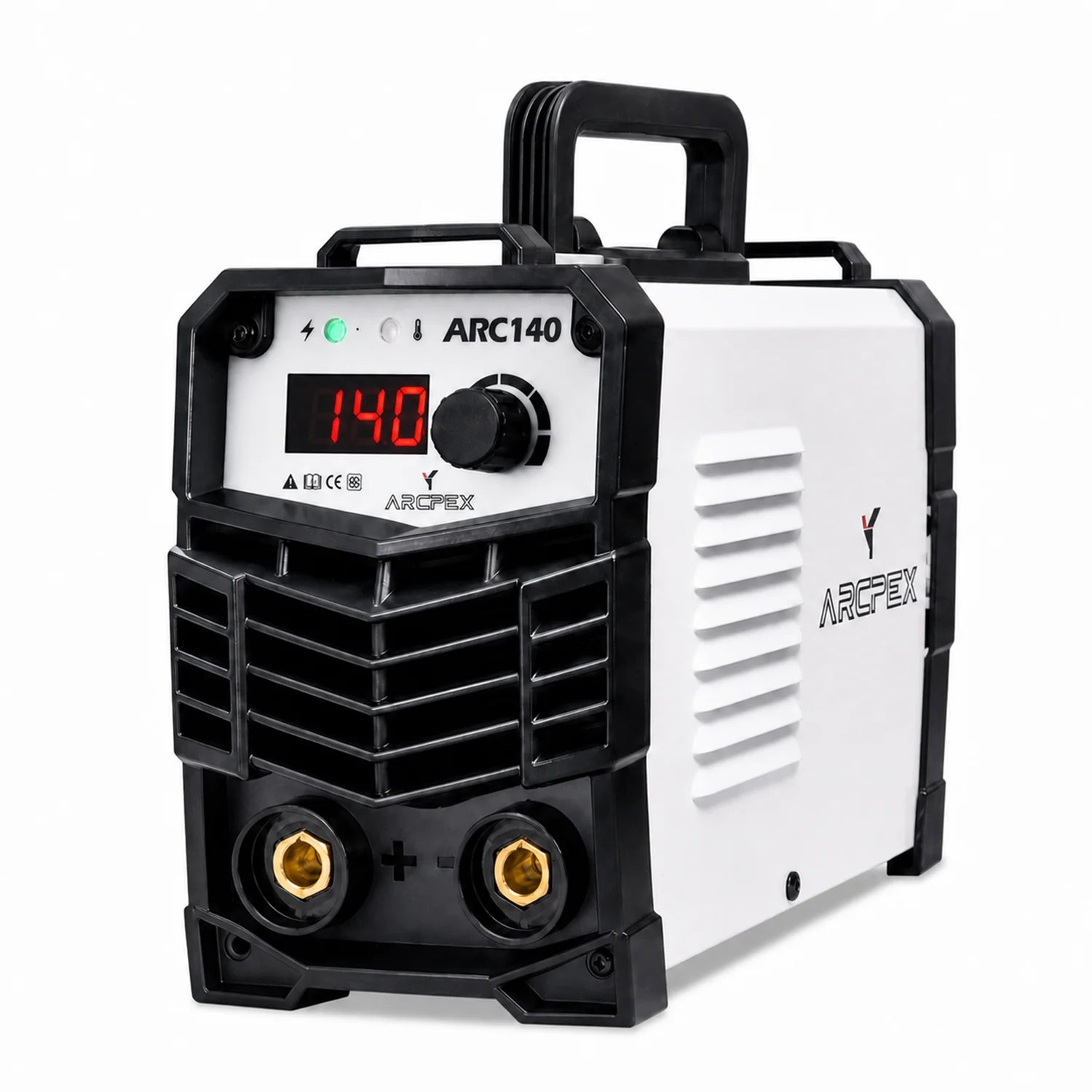

The ARCPEX ARC140 MINI is a compact, lightweight 110V MMA stick welder built for home repair, farm maintenance, and DIY projects. Powered by IGBT inverter technology, it delivers a panel-adjustable output of 20–140A (rated output 110A per IEC standard) with Hot Start, Arc Force, and Anti-Stick protection — all in a portable body weighing just 2.56 kg. Backed by a 2-Year Warranty and 6-hour rapid response support.
⚡ UP TO 140A OUTPUT · IGBT INVERTER

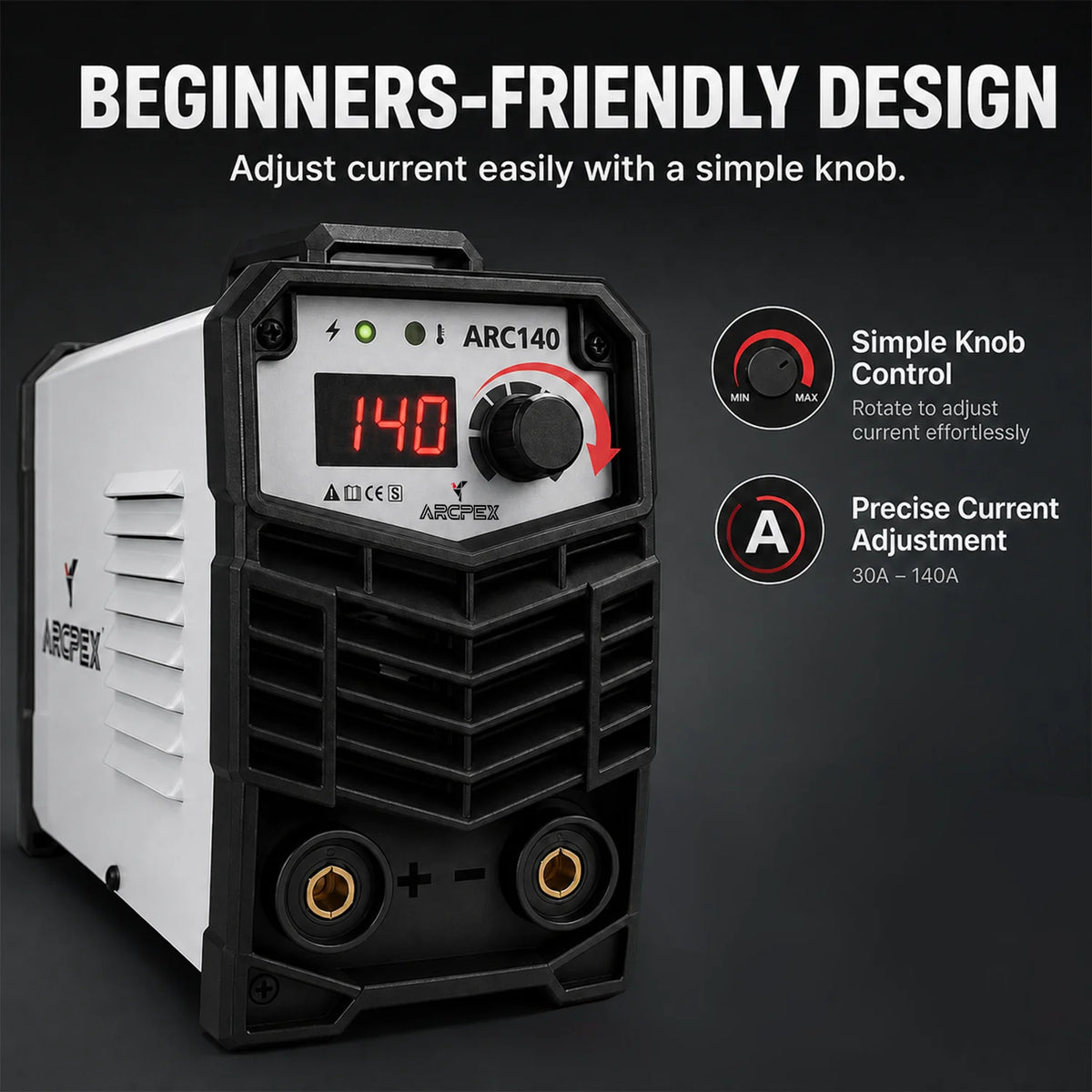

Panel-adjustable from 20–140A with a rated output of 110A (IEC standard). Precise current control handles everything from thin sheet metal to thicker mild steel plate.
Compatible with 1/16"–1/8" (1.6–3.2mm) electrodes on mild steel, stainless steel, and cast iron.
🔌 110V SINGLE VOLTAGE — PLUG & WELD
Designed for standard 110V/20A household outlets — no special wiring or generator required. Works in home garages, workshops, and farm outbuildings where 220V power is unavailable.
🛡️ 3-IN-1 PROTECTION SYSTEM
🔥 Hot Start — Extra current burst at arc initiation for instant, clean strikes
⚡ Arc Force — Auto-adjusts current to prevent sticking and maintain stable penetration
🚫 Anti-Stick — Cuts power instantly when electrode sticks, protecting electrode and workpiece
🎒 ULTRA-PORTABLE · ONLY 2.56 KG

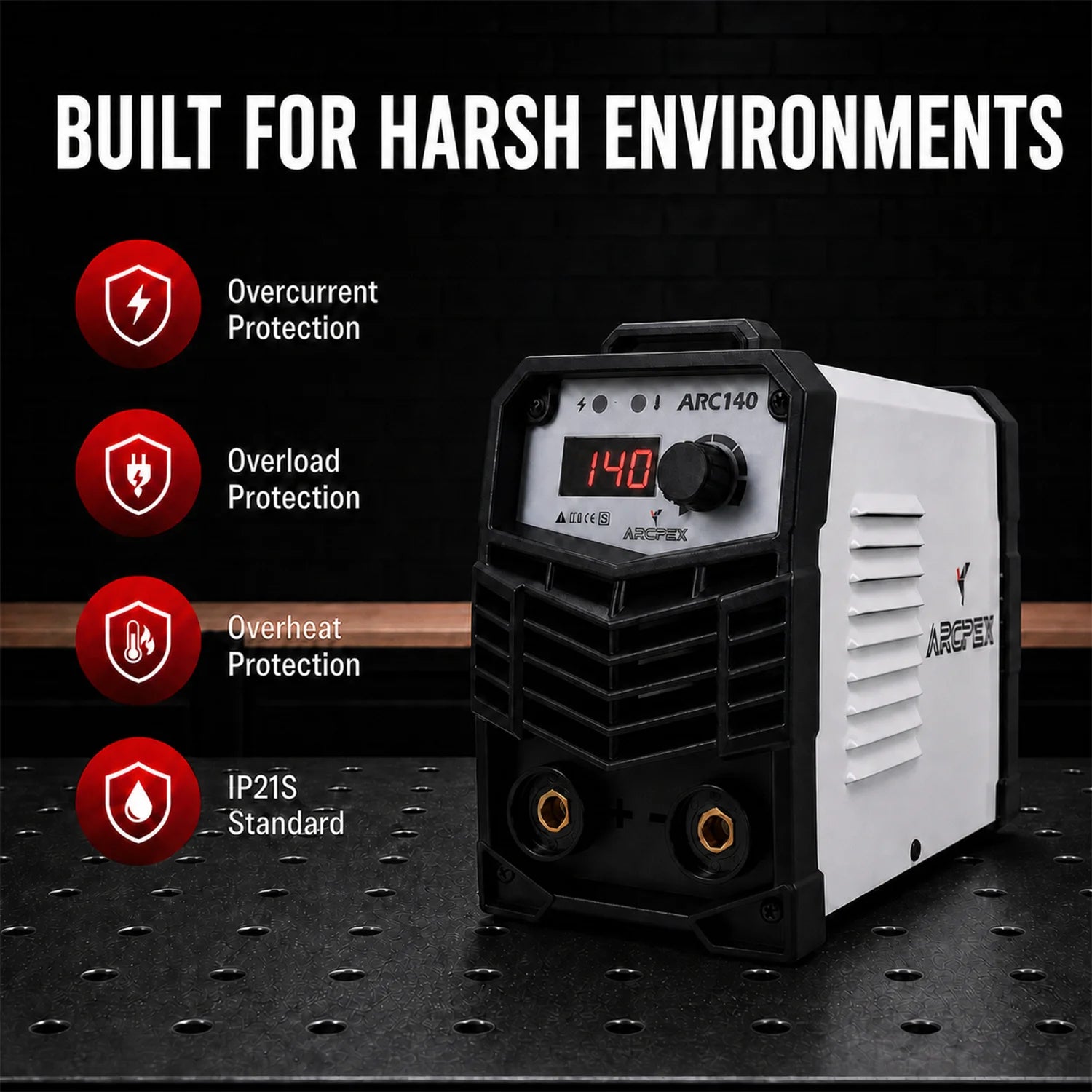

At just 2.56 kg (5.6 lbs) and 260×125×205mm, it's one of the lightest stick welders in its class. Air-cooled with IP21S protection for reliable use in dusty environments.
| Model | ARCPEX ARC140 MINI |
| Input Voltage | AC 110V / 50–60Hz |
| Rated Input Power | 4.6 KW |
| Output Current Range | 20–140A (panel adjustable; rated output 110A per IEC standard) |
| Rated Output Voltage | 24.4V |
| No-Load Voltage | 85V |
| Duty Cycle | 20% @ Rated Output |
| Power Factor | 0.73 |
| Efficiency | 80% |
| Welding Process | MMA Stick Welding |
| Protection System | Hot Start · Arc Force · Anti-Stick |
| Technology | IGBT Inverter |
| Insulation Class | Class F |
| Protection Rating | IP21S |
| Cooling Method | Air Cooling |
| Weight | 2.56 kg (5.6 lbs) |
| Dimensions (L×W×H) | 260 × 125 × 205 mm |
| Warranty | 2-Year Warranty · 6-Hour Support Response |
🏠 Home Repair & DIY
Fence repairs, gate fabrication, metal furniture, and general home maintenance. Plugs into any standard 110V outlet — perfect for the weekend warrior and first-time welder.
🚜 Farm & Ranch Maintenance
Quick repairs on farm equipment, trailers, gates, and fencing. Lightweight enough to carry anywhere on the property. Handles rusty and dirty metal where other processes struggle.
🔩 Light Fabrication
Sheet metal work, brackets, supports, and small structural components. The full 20–140A adjustment range gives precise control to avoid burn-through on thin materials.
🎓 Beginner Learning
Simple controls and a forgiving arc make it easy to learn technique. Lightweight design reduces fatigue during practice sessions, so you can focus on improving your weld.

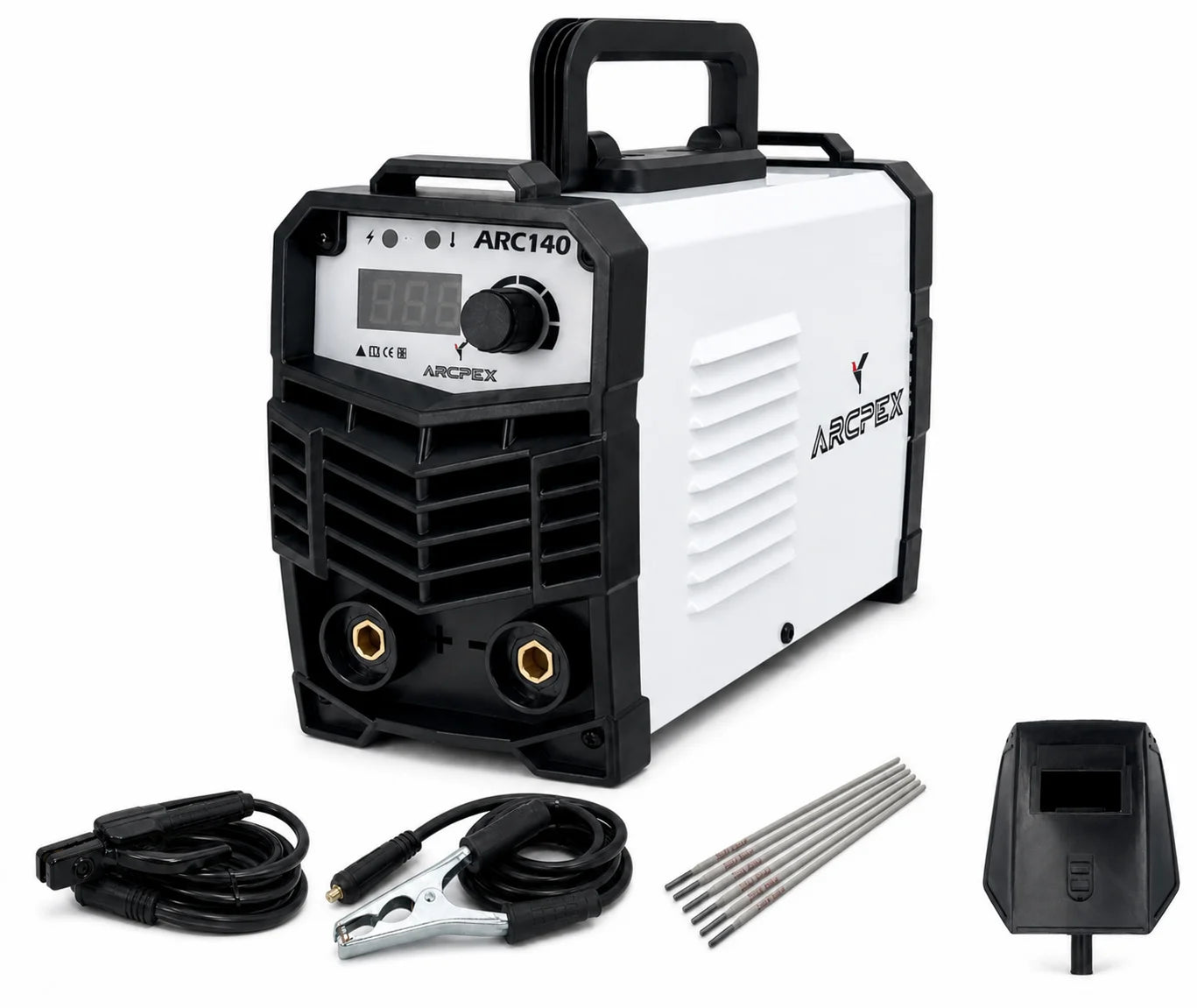

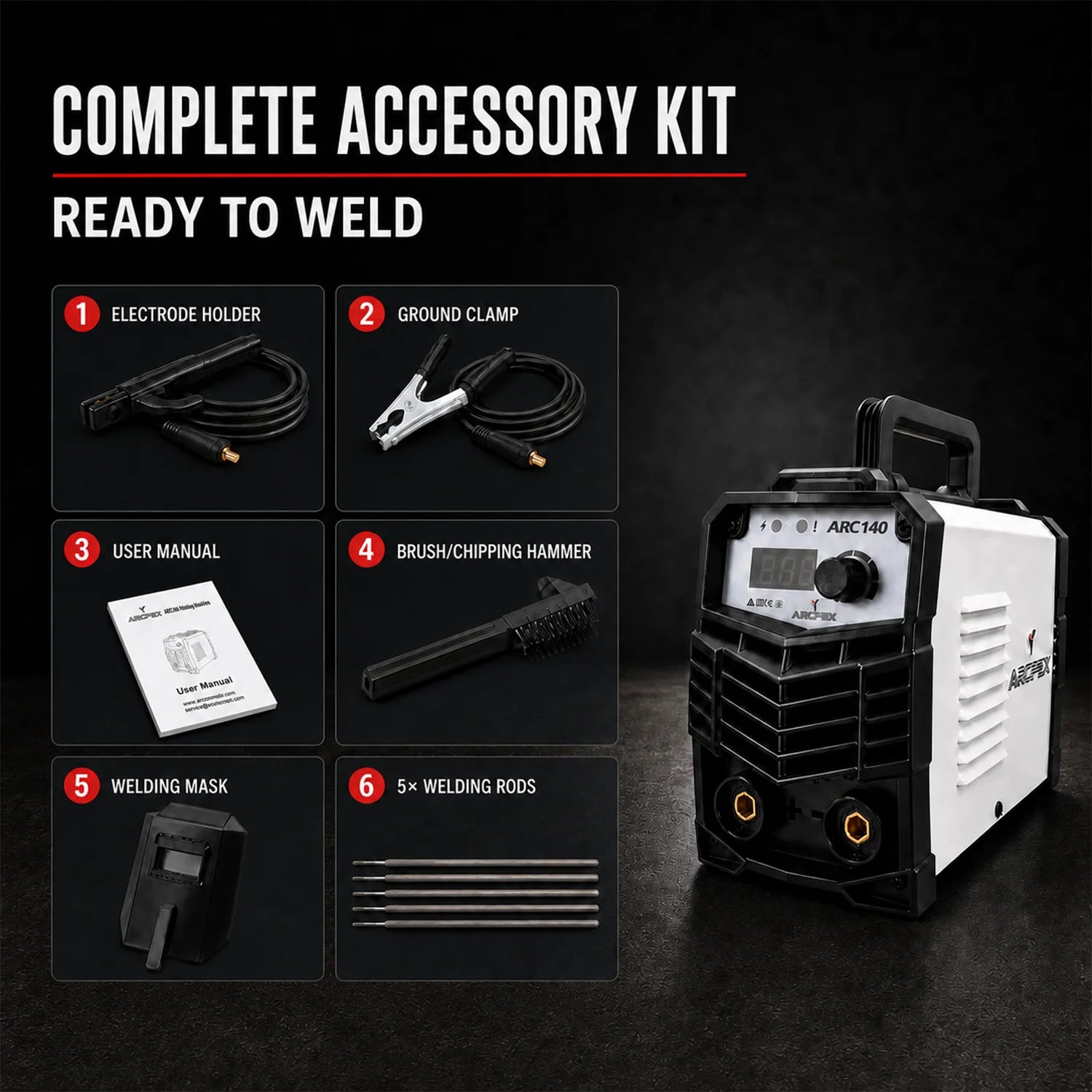

- 1× ARCPEX ARC140 MINI welding machine
- 1× Electrode Holder with cable
- 1× Ground Clamp with cable
- 1× User Manual (English)
- 5× Electrode rods
- 1× Welding mask
What electrodes can the ARC140 MINI use?
Why does a clamp meter read lower than the panel display?
What is Hot Start and why does it matter?
What is Anti-Stick and how does it protect my electrode?
Can I use this on a standard home outlet?
What is the duty cycle and what does it mean?
What does the 2-Year Warranty cover?
